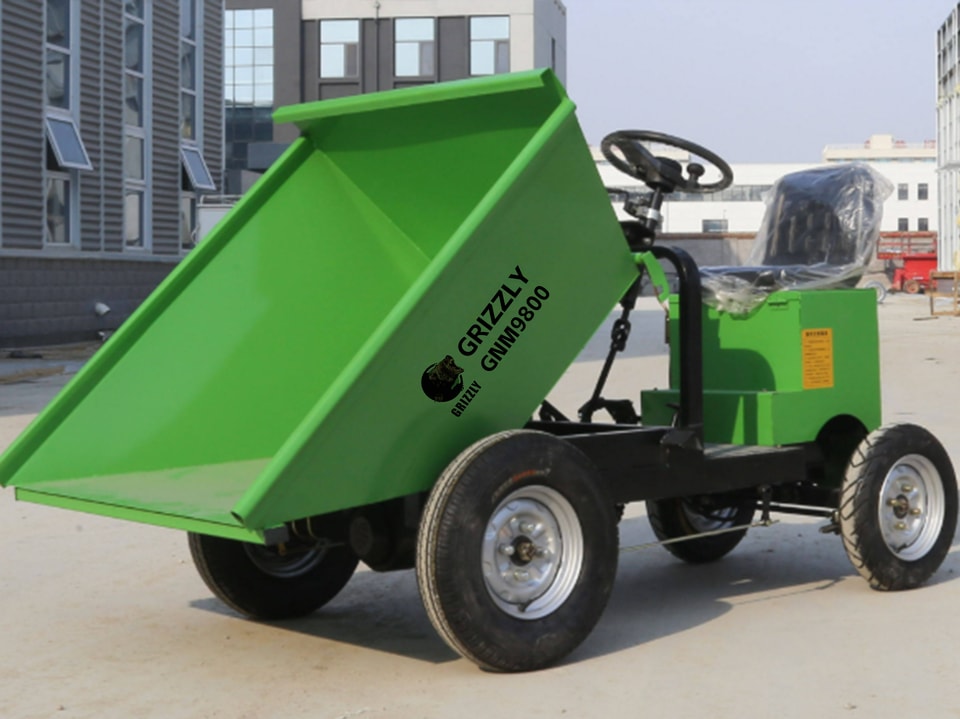

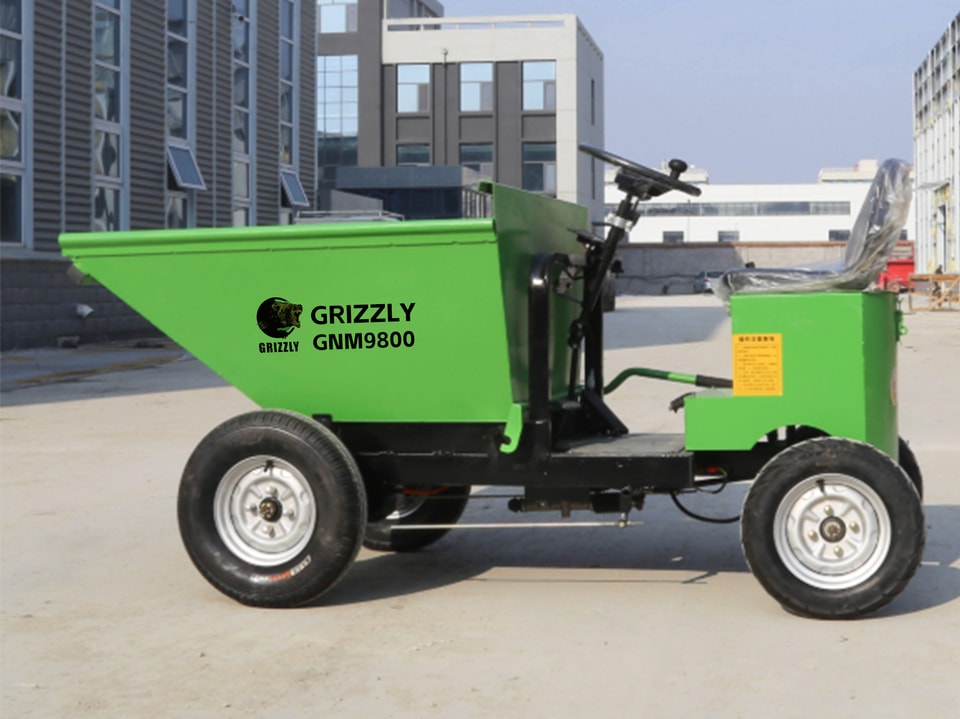

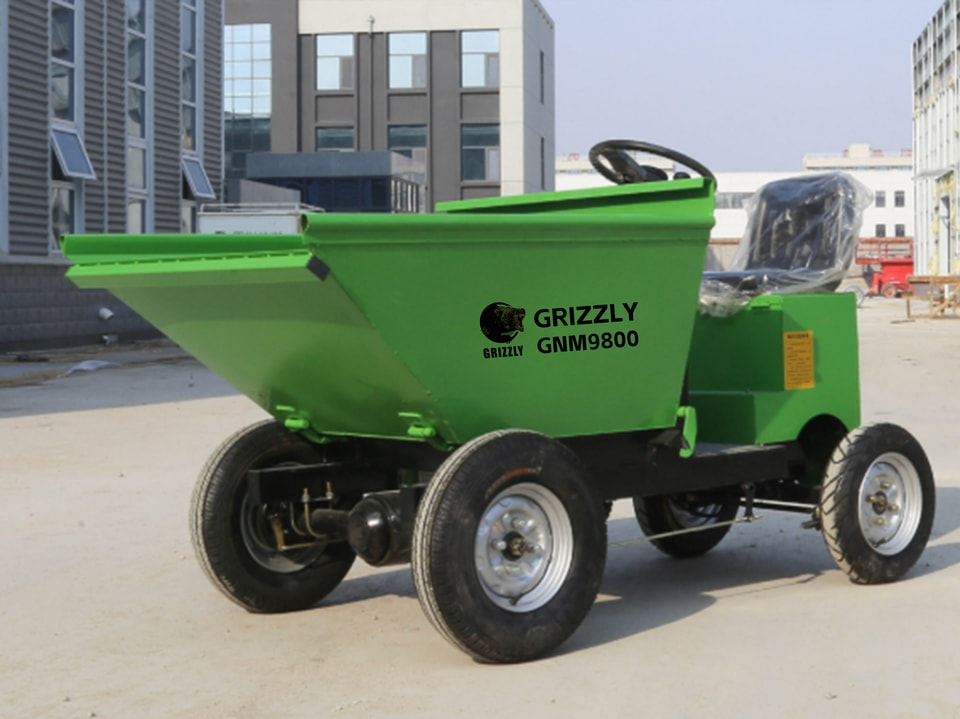

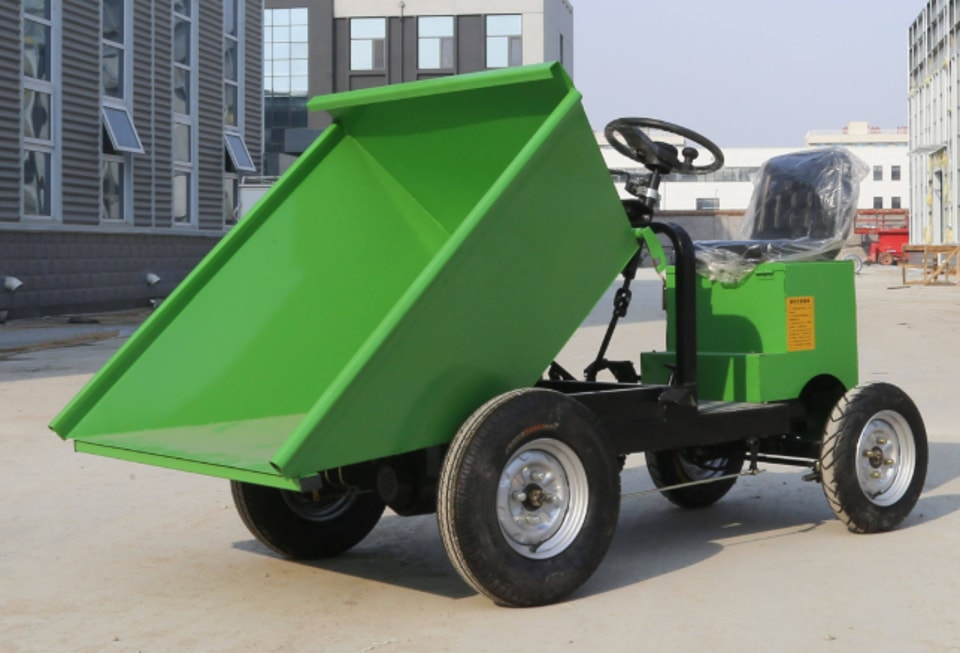

Model	800 Electric Front-Tipping Dumper
Voltage	48V
Current	45A
Controller	Dual-Row 24-Tube
Tipping Mechanism	Manual Front-Tipping
Bucket Capacity	0.55 m³
Max. Load Capacity	800 kg
Curb Weight	238 kg
Max. Climbing Gradient	15–30°
Steering Wheel Diameter	410 mm
Drive Wheel Diameter	470 mm
Steering Tire Model	3.50-10
Drive Tire Model	4.50-10
Tire Type	Pneumatic Rubber Tires
Continuous Operation Time	6–8 hours
Overall Dimensions (L×W×H)	2200 × 1000 × 980 mm
Hopper Dimensions (L×W×H)	1200 × 1000 × 480 mm
