Specifications

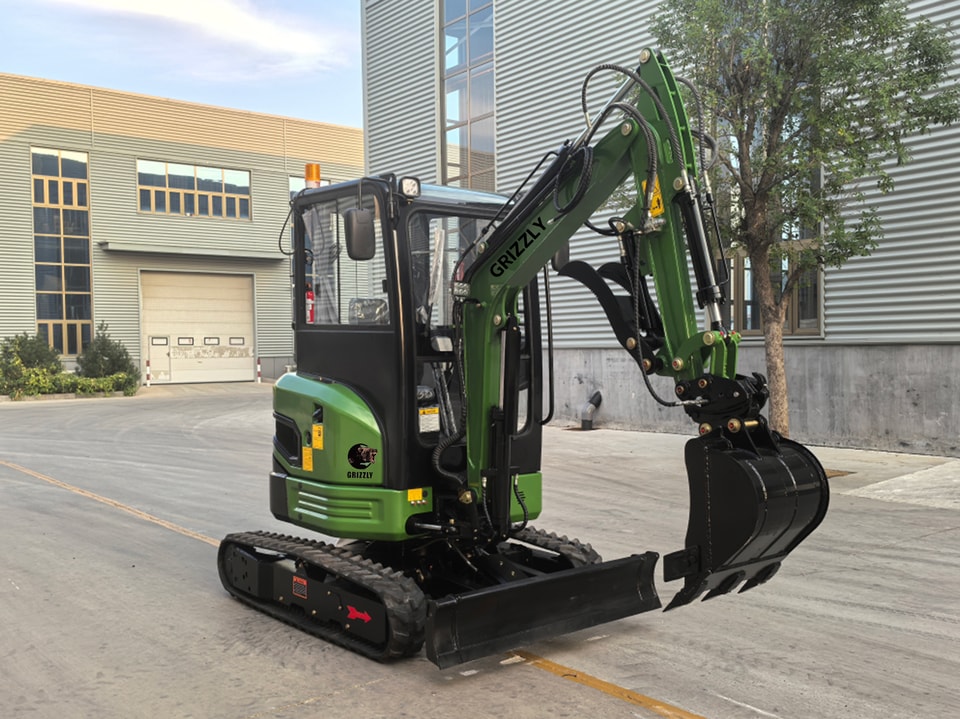

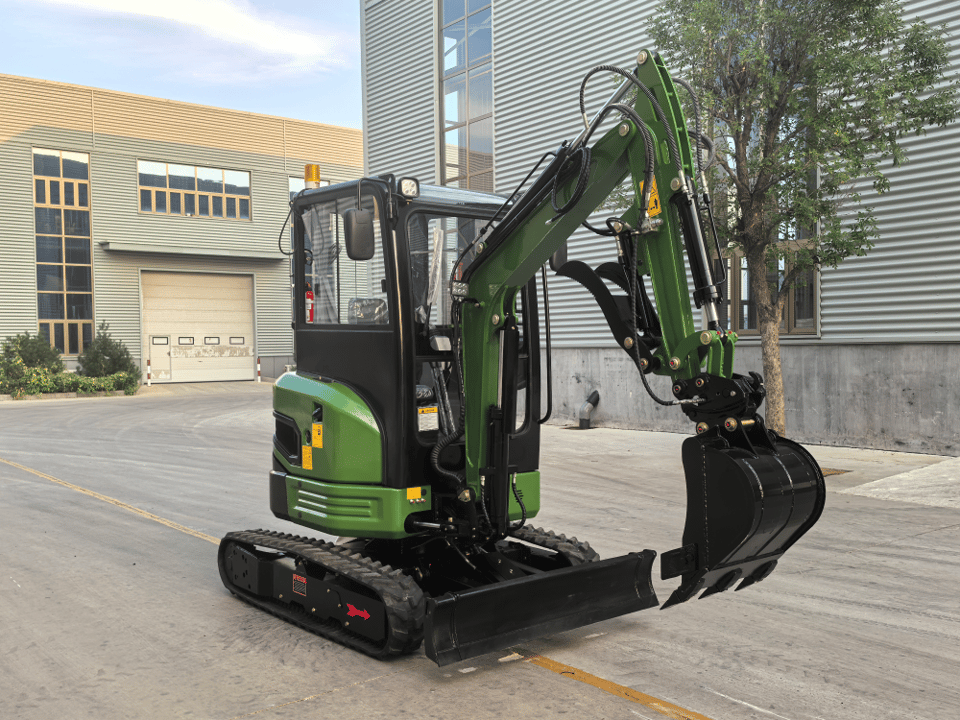

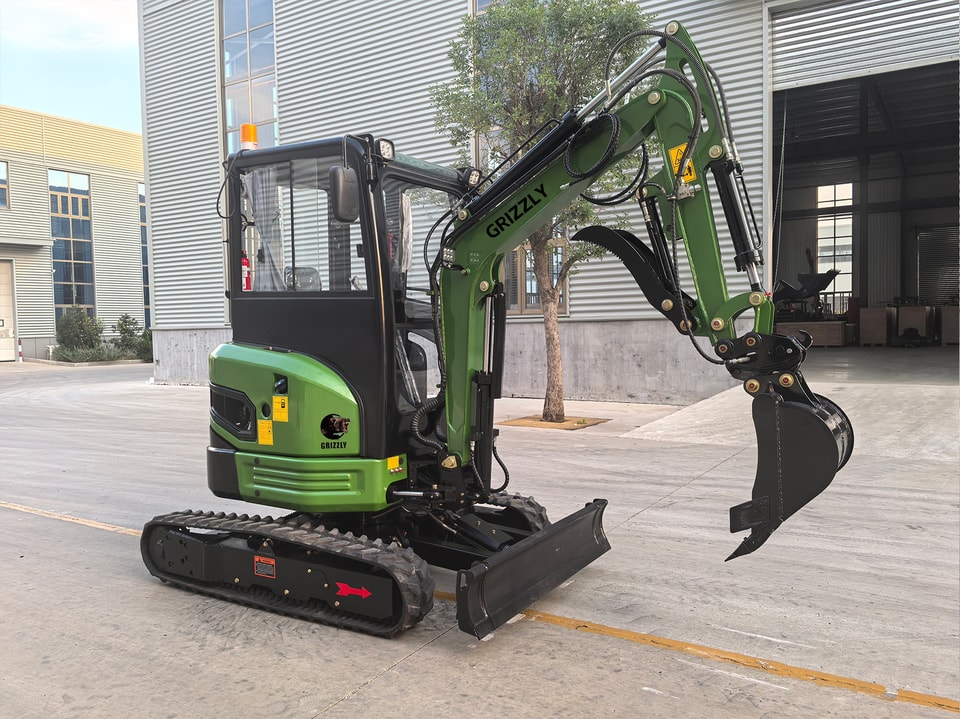

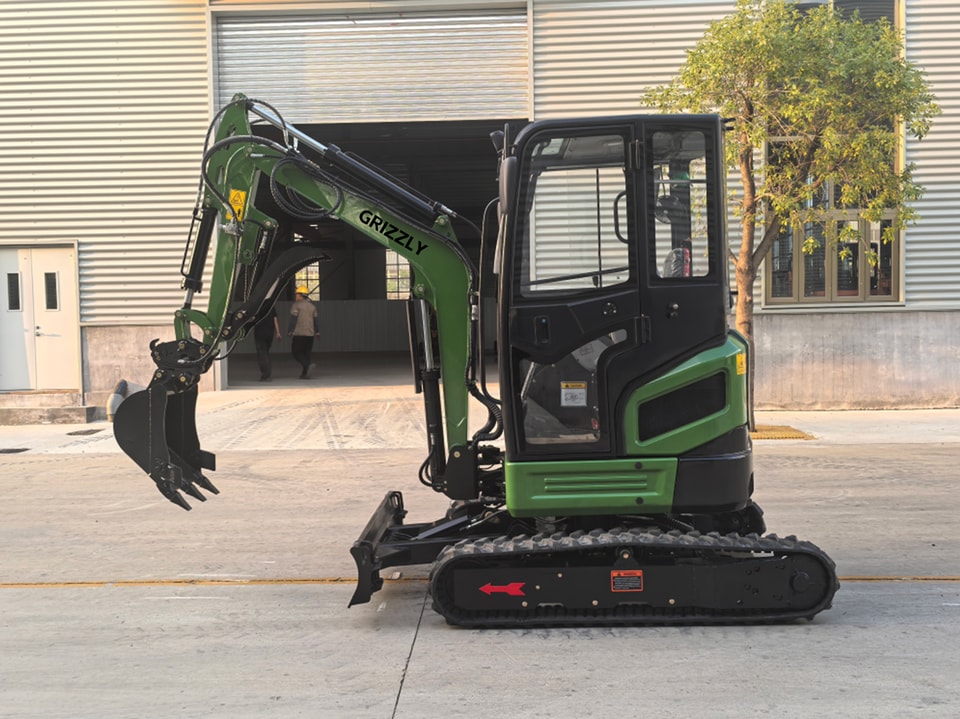

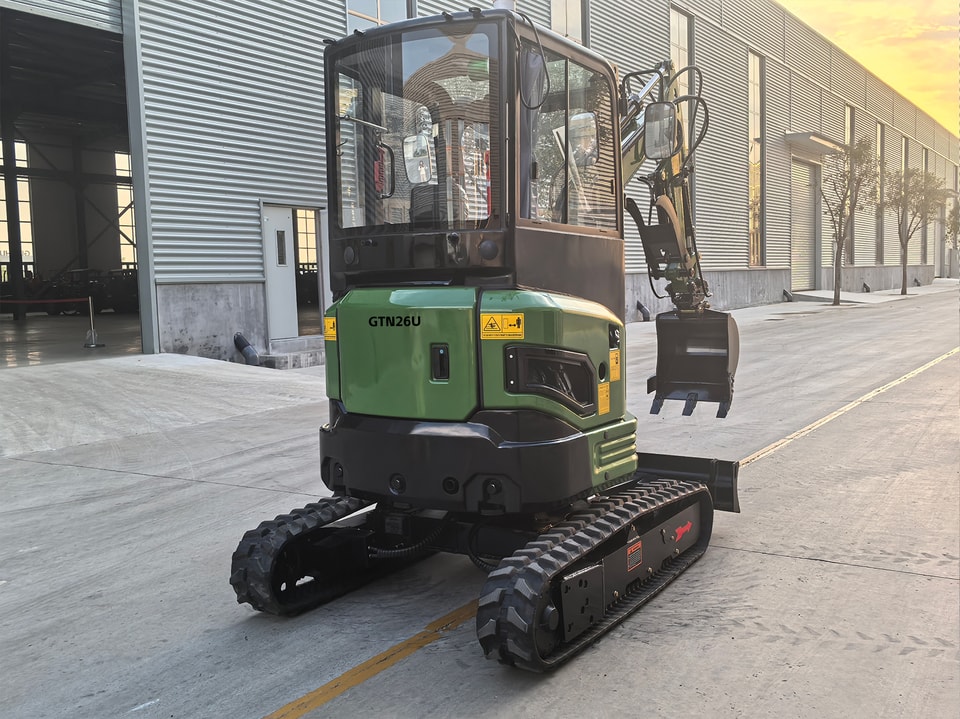

| 型号/Model | GTN26U | ||
| Feature 特点 | * 液压控制 * 常柴390 20kw * 摇摆臂 * 遮阳棚 * 橡胶履带 * 工具箱 | * Hydraulic control * Changchai 390 20kw * Swing Arm * Sunshade * Rubber Tracks * Toolbox | |
| SPECIFICATION 规格 | Operation Weight（工作重量）t | 2.5ton | 2.5ton |
| Engine Brand（发动机） | Changchai 390 | Changchai 390 | |
| Rated Power（额定功率） | 20kw | 20kw | |
| Digging Bucket Capacity（铲斗容量）m³ | 0.075 | 0.075 | |
| Bucket Width（铲斗宽度）（不含边齿） | 500mm | 500mm | |
| Traveling Motor（行走马达） | 高低速-力克川 | High and low speed - Lichuan | |
| Travel Speed（行走速度）km/h | 3.1/2 km/h | 3.1/2 km/h | |
| Swing Motor（回转马达） | 力克川 | Lichuan | |
| Swing Speed（回转速度） | 12r/min | 12r/min | |
| Hydraulic system(液压系统） | 柱塞泵/负载多路阀（整套：龙工/恒立） | Piston pump/load-bearing multi-way valve (complete set: Lonking/Hengli) | |
| Body Swing Radius（尾部旋转半径） | 883 | 883 | |
| Body Swing Angel | 360 | 360 | |
| Boom Swing Angel(L/R)（动臂回转角度） | 55/45 | 55/45 | |
| Max. Grade Ability（爬坡力） | 35 | 35 | |
| 燃油箱（L) | 16L | 16L | |
| 液压油箱（L) | 26L | 26L | |
| MAIN DIMENSIONS 主要尺寸 | Overall Length（总长：运输状态） | 4185 | 4185 |
| Overall Width（总宽） | 1500 | 1500 | |
| Overall Height（总高） | 2280/2450 | 2280/2450 | |
| Track Width（履带宽度） | 250 | 250 | |
| Track Length（履带长度） | 2044 | 2044 | |
| Body Width（上机身宽度） | 1260 | 1260 | |
| WORKING RANGE 工作范围 | Max. Digging Radius（最大挖掘半径）mm | 4350 | 4350 |
| Max Digging Depth（最大挖掘深度）mm | 2745 | 2745 | |
| Max. Digging Height（最大挖掘高度）mm | 3457 | 3457 | |
| Max. Unloading Height（最大卸载高度）mm | 2366 | 2366 | |
| Min. Swing Radius（最小摆动半径）mm | 2159 | 2159 | |
| Max. Digging Depth Of Dozer Blade（推土铲最大挖掘深度）mm | 293 | 293 | |
| Max. Lifting Height Of Dozer Blade（推土铲最大起升高度）mm | 191 | 191 | |
| OPTION选项 | 发动机，驾驶室，履带，伸缩底盘 ，空调，高低速马达 | Engine, Cab, Tracks, Retractable Undercarriage, Air Conditioning, High/Low SpeedMotors | |
