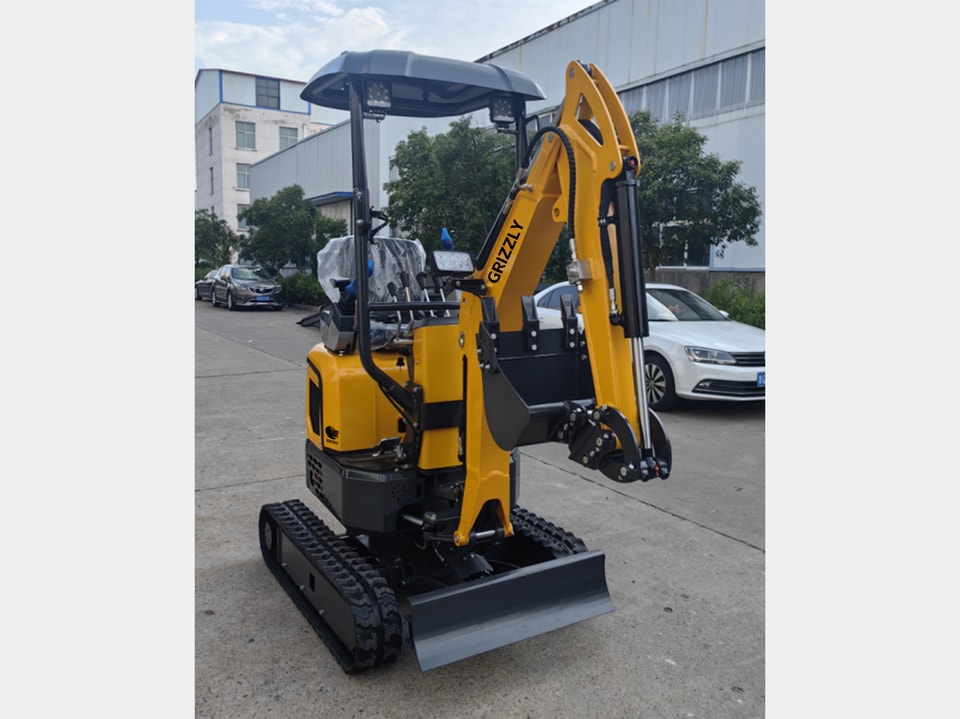

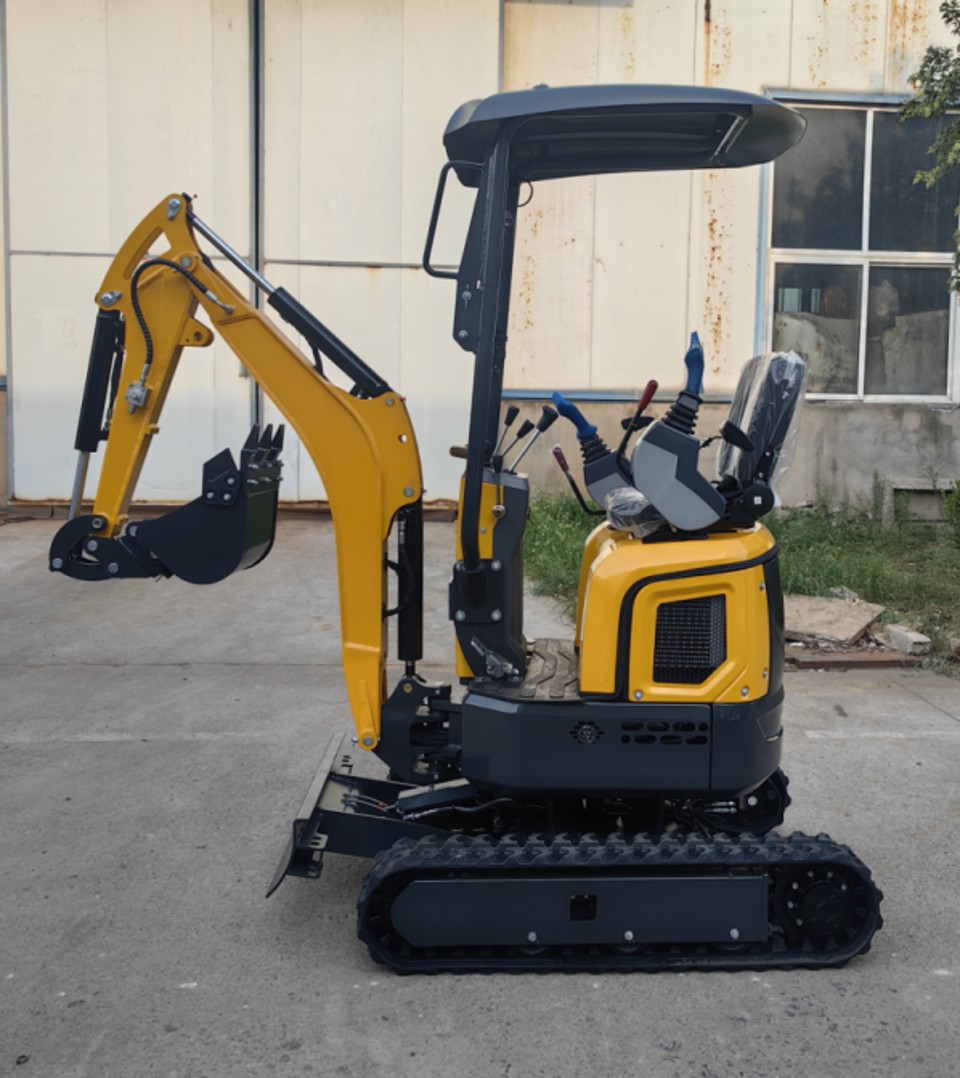

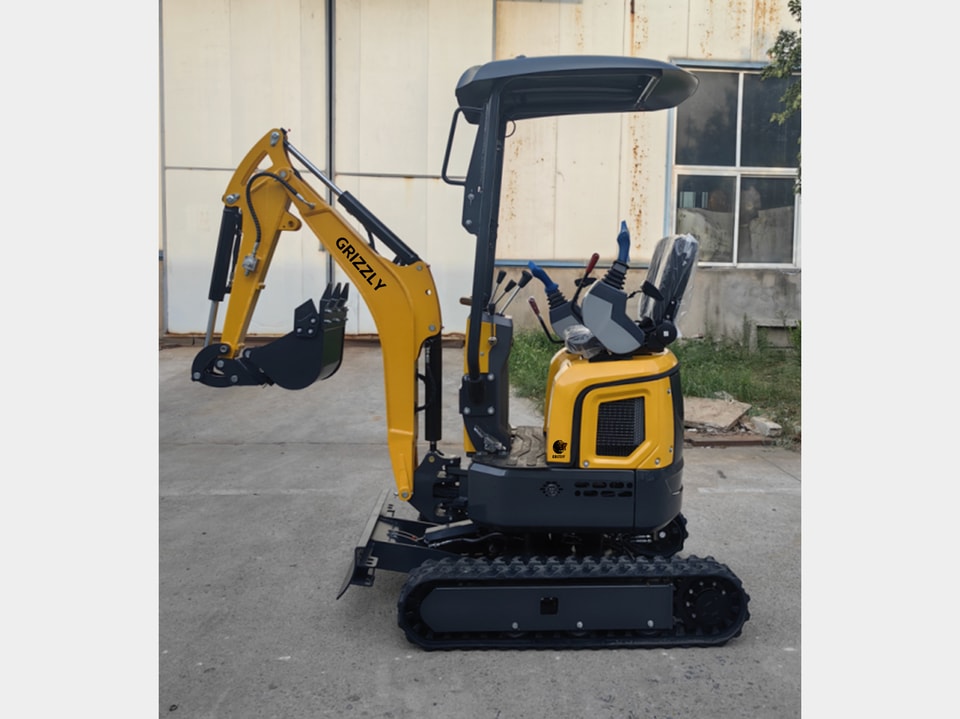

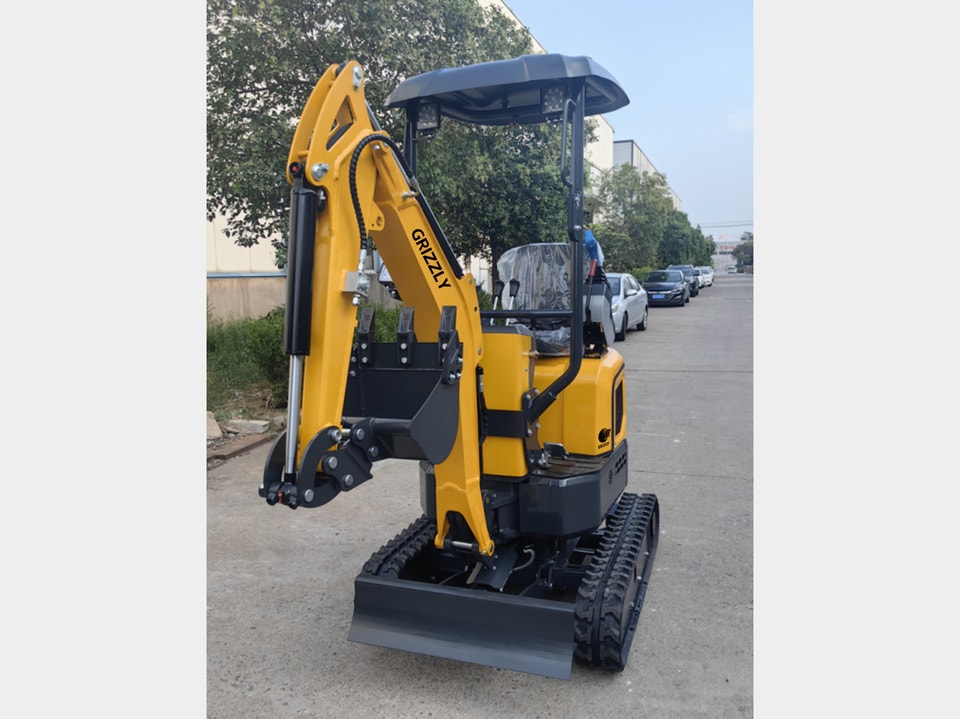

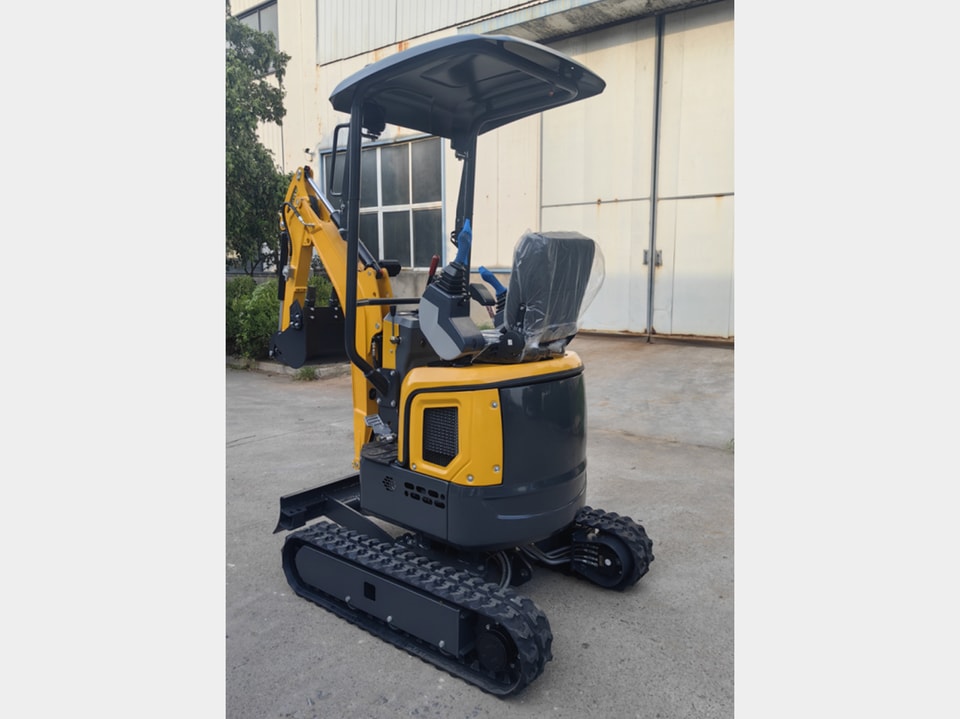

GJY12BP

机型

GJY12BP

基本参数 / Basic data

整机质量 / Overall quality

kg

1200

发动机额定功率 / Engine rated power

kW/rpm

10/2200

整机高度 / Overall height

mm

2400

作业参数 / Operation data

最大挖掘半径 / Maximum excavation radius

mm

3540

最大挖掘深度 / Maximum excavation depth

mm

1830

最大挖掘高度 / Maximum excavation height

mm

3060

结构尺寸 / Structural dimensions

标准动臂长度 / Standard boom length

mm

1500

标准斗杆长度 / Standard boom length

mm

890

底盘宽度 / chassis width

mm

850/1100

尾部回转半径 / Tail turning radius

mm

850

性能参数 / Performance parameters

司机位置处噪声 / Noise at the driver's seat

dB

≤77

整机机外噪声 / Overall machine external noise

dB

≤92

排放标准 / Emission standards

-

欧Ⅴ

回转速度 / Rotation speed

r/min

8.5

行走速度 / walking speed

Km/h

1.4/2.6

工作油路压力 / Working oil circuit pressure

MPa

17.5

主泵流量 / Main pump flow

L/min

11+11+4.4

部件 / part

JY12BP

注释 / Notes

发动机  / engine

洋马 /YANMAR 3TNV70

YANMAR

主泵  / main pump

三联齿轮泵 / Triple gear pump

Gear pump

主阀  / main valve

EBI

TAIFENG/EBI

回转马达 / Rotary motor

济宁力源 / JiNing LiYuan

LIYUAN

行走马达 / Walking motor

不二越 / LONKING/NACHI

LONKING/NACHI

胶管 / hose

日本住友 / Japan SUNMITOMO

SUNMITOMO

线束  / wire harness

韩国NET / Korea NET

NET

蓄电池  / storage battery

瓦尔塔 / WARTA

WARTA
